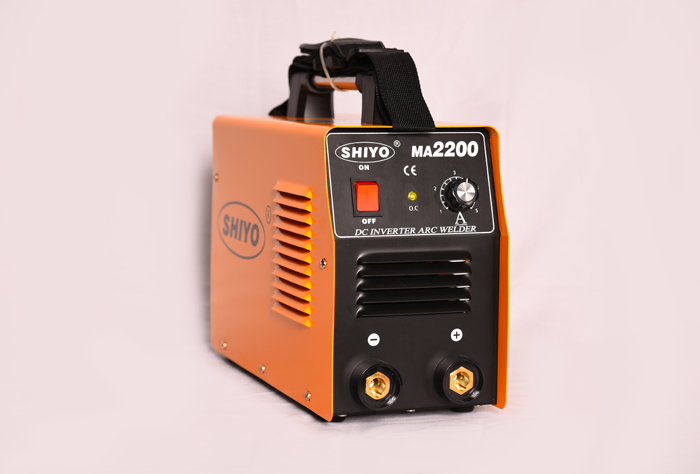

SHIYO MA2200
| MODEL | MA 2200 |
|---|---|
| INPUT POWER VOLTAGE (VAC) | SINGLE PHASE 220±15% |
| INPUT FREQUENCY (HZ) | 50/60 |
| RATED INPUT POWER CAPACITY (KVA) | 5.3 |
| OUTPUT CURRENT RANGE (A) | 10 ~ 160 |
| O.C.V (V) | 56 |
| RATE OUTPUT VOLTAGE (V) | 26.4 |
| DUTY CYCLE (%) | 50 |
| EFFICIENCY (%) | 85 |
| POWER FACTOR (COS Ø) | 0.93 |
| WEIGHT (KG) | 8 |
| OVERALL DIMENSION (MM) | 371 x 153 x 299 |
| INSULATION CLASS | F |
| PROTECTION CLASS | IP23 |
| ARC FORCE RANGE (A) | - |
| DIAMETER OF ROD (MM) | 1.6 ~ 3.2 |
