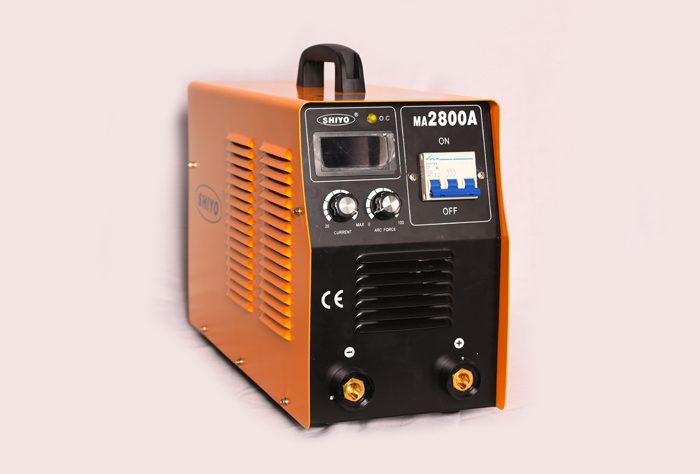

SHIYO MA2800A
| MODEL | MA 2800A |
|---|---|
| INPUT POWER VOLTAGE (VAC) | THREE PHASE 415±10% |
| INPUT FREQUENCY (HZ) | 50/60 |
| RATED INPUT POWER CAPACITY (KVA) | 9.4 |
| OUTPUT CURRENT RANGE (A) | 20 ~ 250 |
| O.C.V (V) | 58 |
| RATE OUTPUT VOLTAGE (V) | 30 |
| DUTY CYCLE (%) | 60 |
| EFFICIENCY (%) | 85 |
| POWER FACTOR (COS Ø) | 0.93 |
| WEIGHT (KG) | 17.2 |
| OVERALL DIMENSION (MM) | 480 x 203 x 369 |
| INSULATION CLASS | F |
| PROTECTION CLASS | IP23 |
| ARC FORCE RANGE (A) | 0 ~ 100 |
| DIAMETER OF ROD (MM) | 1.6 ~ 4 |
