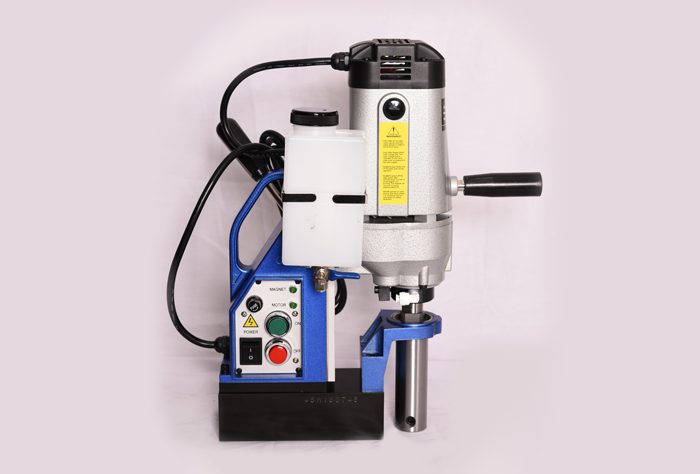

SHIYO SH35M

Category:

ModelSH35M
Voltage (Single Phase)220 – 240V AC
50 / 60 HZ
Motor Rated Power Consumption1100W
Motor Rated Ampere5A
No-load Speed780 rpm
Tool Adaptor Inner Diameter19.05mm
Adjustable In Height For Max. Stroke100mm
Coolant SupplyVia Tool Holder
Magnet Power Consumption38W
Magnet Adhesion7350 N / 750 kgf
Magnet Dimensions186mm x 80mm x 58mm
Weight14kg
HOLE-CUTTING CAPACITY
Annular CutterHole DiameterPlate Thickness
13-35mm (Standard)9-50mm (Standard)
Drill Chuck & Twist Dri1-13mm
Special Adaptor & Twist Drill
STANDARD ACCESSORIES1. Pilot Pin 8.0 x 91mm : 1pc
2. Double Open End Wrench : 1pc
3. Operating Handle : 3pcs
4. Lifting Handle : 1pc
Special Adaptor & Twist Drill1. Chuck adaptor arbor
2. Drill Chuck
3. Annual Cutter (one touch or weldon shank)
4. Twist Drill (1-13mm)
5. Hole Saw (13-40mm)
6. Safety Balt
×
