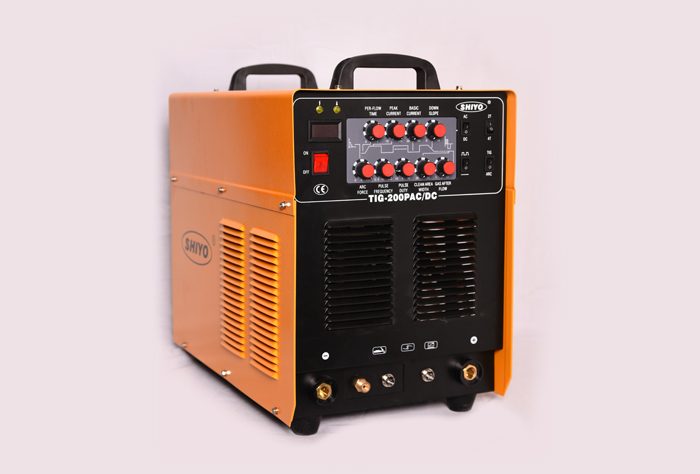

SHIYO TIG200P AC/DC

MODEL	SHIYO TIG 200P AC/DC
Input Powe Voltage (V)	SINGLE - PHASE 230±10%
Input Voltage Frequency (Hz)	50/60 Hz
Rate Input Power Capacity (KVA)	4.6
Welding Current Range (A)	10-200
Duty Cycle %	60
No Load Voltage	-
Rated Output Voltage (V)	18V
Post Flow Time (S)	0-10
Staring Arc	HF
Efficiency (%)	85
Weight (KG)	27
Dimension (mm)	493 x 330 x 320
Spot Weld Repeat Time (S)	-
O.C.V (V)	56
Power Factor (COS Ø)	0.93
Insulation Class	F
Protection Class	IP23
Post - Low Time (S)	0-10
Welding Thickness (mm)	0.5-10
