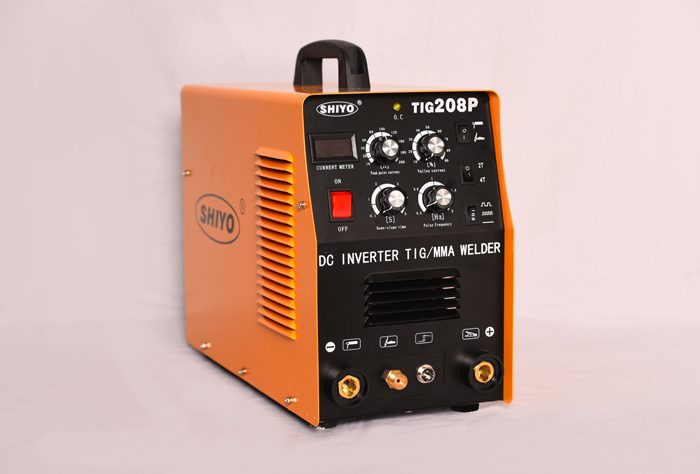

MODEL | SHIYO TIG 208P |
---|---|
Input Powe Voltage (V) | AC230±15% |
Input Voltage Frequency (Hz) | 50/60 Hz |
Rate Input Power Capacity (KVA) | 4.6 |
Welding Current Range (A) | 10-200A |
Duty Cycle % | 100% at 160A 60% at 200A |
No Load Voltage | 42V |
Rated Output Voltage (V) | 18.5V |
Post Flow Time (S) | 2.5 / 5.0 |
Staring Arc | HF |
Efficiency (%) | 85 |
Weight (KG) | 8 |
Dimension (mm) | 493 x 330 x 320 |
Spot Weld Repeat Time (S) | 0.05S |
O.C.V (V) | 54 |
Power Factor (COS Ø) | 0.93 |
Insulation Class | F |
Protection Class | IP23 |
Post - Low Time (S) | 5 |
Welding Thickness (mm) | 0.5 - 8 |
